Tutorial: Query LabKey Server from RStudio

Documentation
This topic is under construction.

This tutorial shows you how to pull data directly from LabKey Server into RStudio for analysis and visualization.

Tutorial Steps:

Install R Studio

  • If necessary, install R version 3.0.1 or later. If you already have R installed, you can skip this step.
  • If necessary, install RStudio Desktop on your local machine. If you already have RStudio installed, you can skip this step.

Install Rlabkey Package

  • Open RStudio.
  • On the Console enter the following:
install.packages("Rlabkey")
  • Follow any prompts to complete the installation.

Query Public Data

  • This will auto-generate the R code that queries the Physical Exam data:
library(Rlabkey)

# Select rows into a data frame called 'labkey.data'

labkey.data <- labkey.selectRows(
baseUrl="https://www.labkey.org",
folderPath="/Explore/Research Study",
schemaName="study",
queryName="PhysicalExam",
viewName="",
colSelect="ParticipantId,ParticipantVisit/Visit,date,weight_kg,temperature_C,systolicBP,diastolicBP,pulse",
colFilter=NULL,
containerFilter=NULL,
colNameOpt="rname"
)
  • Copy this code to your clipboard.
  • Go to RStudio, paste the code into the Console tab, and press the Enter key.
  • The query results will be displayed on the 'labkey.data' tab.
  • Enter the following line into the Console to visualize the data.
plot(labkey.data$systolicbp, labkey.data$diastolicbp)
  • Note that the auto-generated code will include any filters applied to the grid. For example, if you filter Physical Exam for records where temperature is greater than 37, then the auto-generated code will include a colFilter property as below:
library(Rlabkey)

# Select rows into a data frame called 'labkey.data'

labkey.data <- labkey.selectRows(
baseUrl="https://www.labkey.org",
folderPath="/Explore/Research Study",
schemaName="study",
queryName="PhysicalExam",
viewName="",
colSelect="ParticipantId,ParticipantVisit/Visit,date,weight_kg,temperature_C,systolicBP,diastolicBP,pulse",
colFilter=makeFilter(c("temperature_C", "GREATER_THAN", "37")),
containerFilter=NULL,
colNameOpt="rname"
)

Handling Login/Authentication

  • To query non-public data, that is, data that requires a login/authentication step to access, you have three options:

Query Non-public Data

  • Once you have set up authentication for RStudio, the process of querying is the same as above:
    • Go to the desired data grid. Apply filters if necessary.

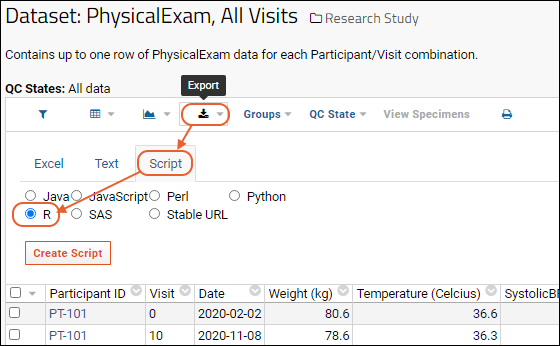

    • Auto-generate the R code using Export > Script > R > Create Script.
    • Use that code in RStudio.
